Yes. WRS uses standard protocols (TCP/IP, SNMP, PTPv2), making it easy to integrate with your current management and timing systems. It supports VLAN configurations and can be managed remotely via SSH or SNMP.
White Rabbit Switch by Creotech Quantum
AvailableAsk

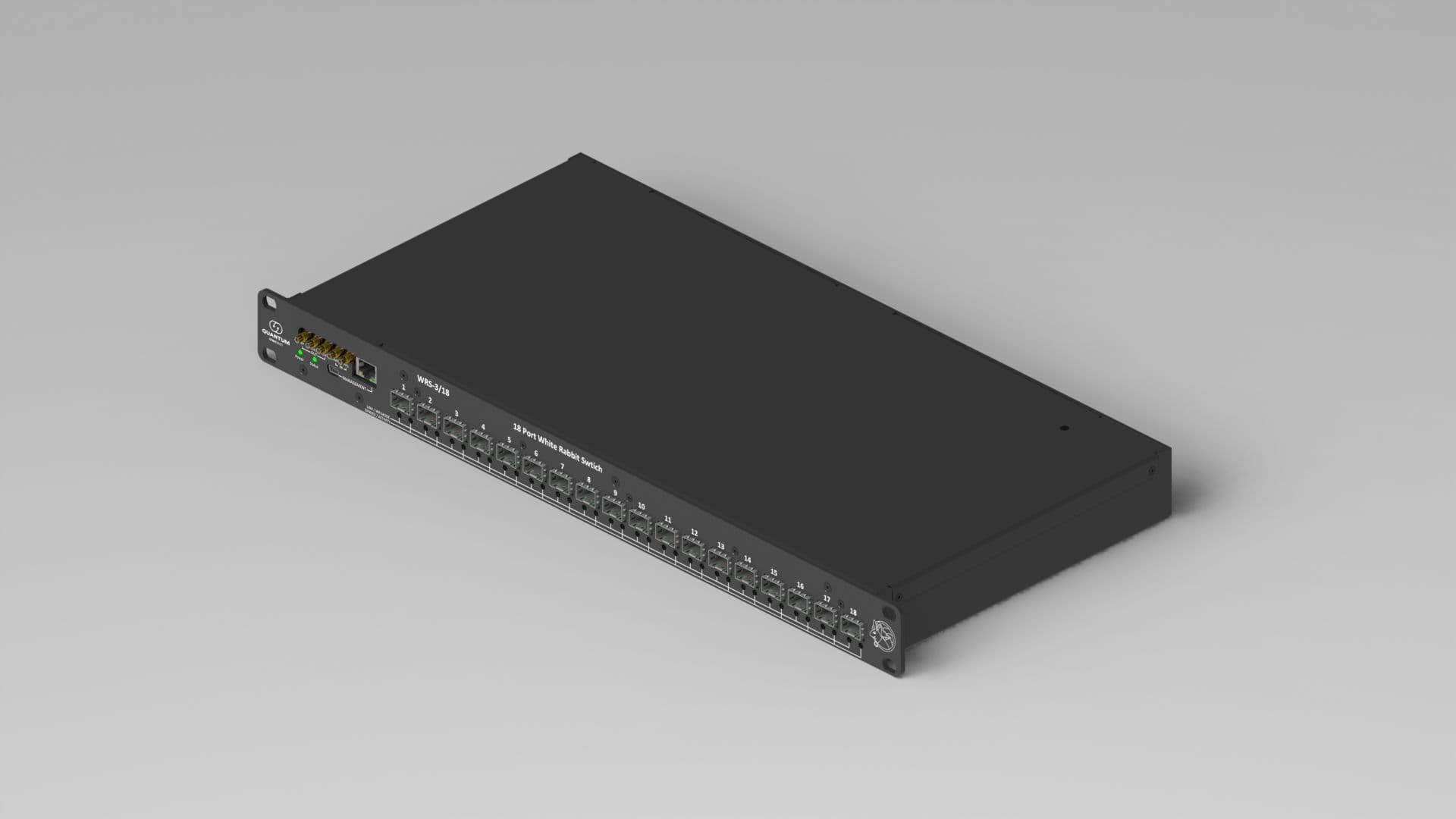

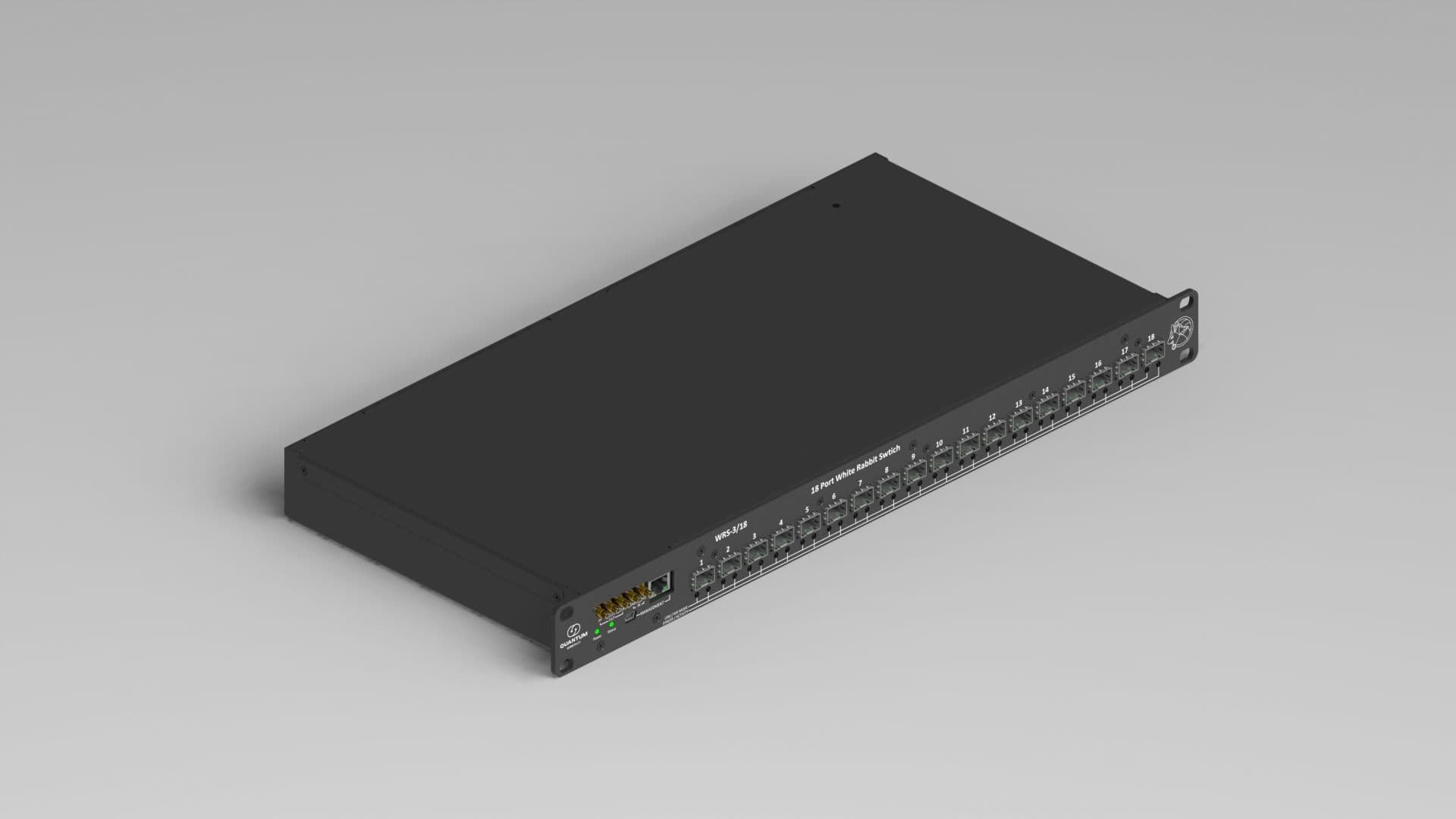

The White Rabbit Switch (WRS) by Creotech Quantum provides sub-nanosecond accuracy and picosecond-level precision in large, distributed systems. It enables deterministic data transfer and precise timestamping—essential for scientific and industrial applications. WRS supports simultaneous time synchronization and data transmission within the same network, with inter-switch distances exceeding 10 km via fiber-optic links. Using the White Rabbit Switch, you can build networks of thousands of nodes while maintaining full stability, scalability, and the highest timing precision.
Technical Specifications

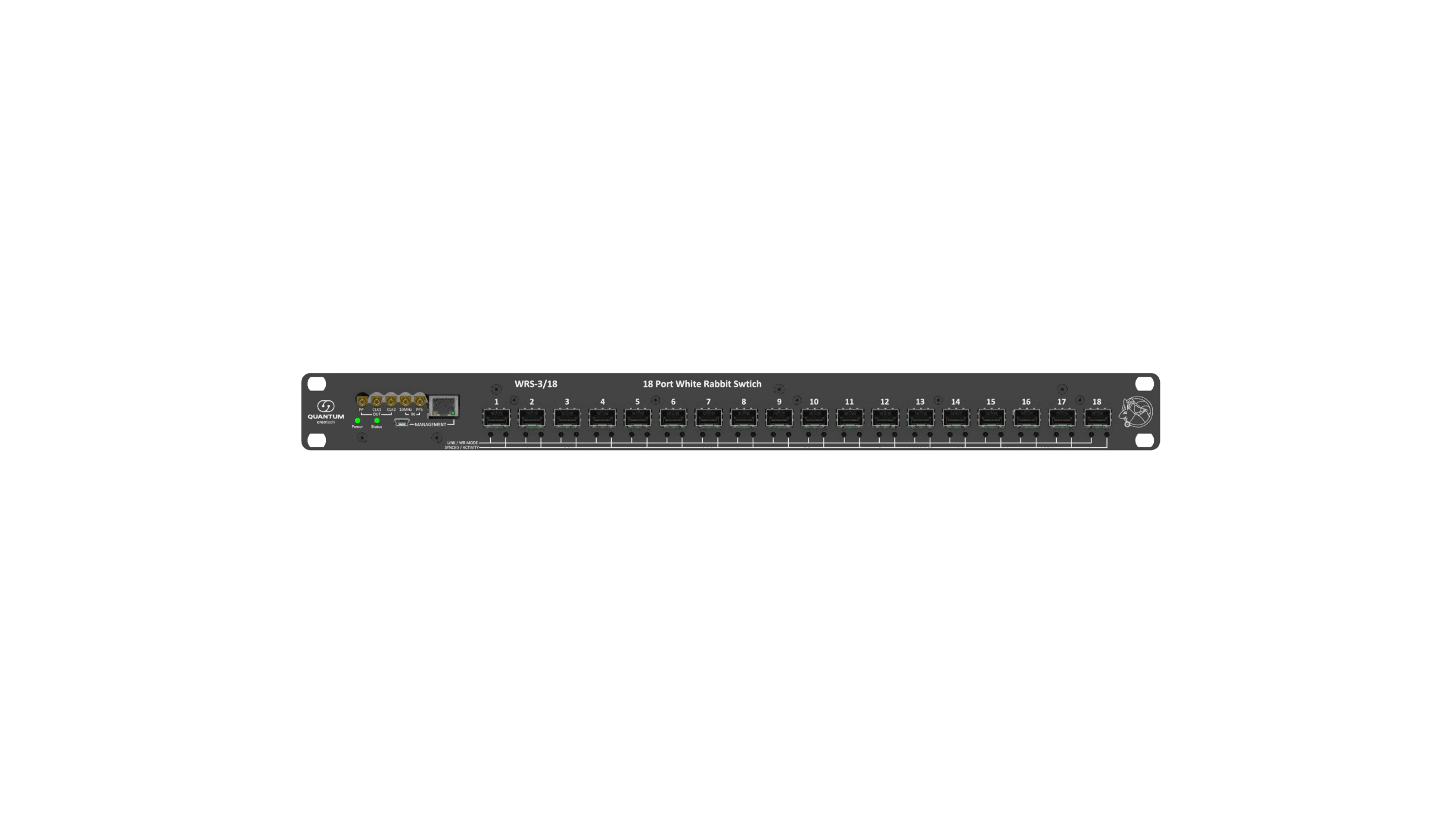

Front Panel
• 5× SMC connectors (1-PPS input/output, 62.5 MHz output, 10 MHz input)
• 18× SFP Gigabit Ethernet ports
• 10/100 Ethernet management port (connected to ARM processor)
• Mini-USB UART management port (connected to ARM processor)
• Power and status LEDs
• Link and Act LEDs for each SFP cage
Rear Panel
• 2× Mini-USB UART debug ports (connected to ARM CPU and FPGA I/Os)
• 2× cooling fans
• 2× micro switches and power button
• 1× grounding connector
Processor & FPGA
• Xilinx Virtex-6 FPGA (LX240T FFG1156)
• ARM Atmel AT91 SAM9G45 processor, 400 MHz
Clocking Resources
• Low-jitter clock generator (TI CDCM61002, 28–683 MHz, used as DMTD offset clock in WRS HDL)
• 25 MHz VCXO FNETHE025, SPI-controlled DAC (AD5662, 16-bit) for CDCM61002
• 25 MHz VCO, SPI DAC-controlled (AD5662) driving AD9516
• 25 MHz XO FNETHE025 (main FPGA clock)
• PLL with 14 outputs, integrated 1.6 GHz VCO (AD9516) for Xilinx GTX and μTCA interfaces
• Internal oscillator VM53S3-25.000 (tied to main WR clock or free-running)
Memory
• 64 MB DDR2
• 256 MB NAND
• 8 MB boot flash
Software
• Linux kernel v3.16.38
• WRP daemon (node discovery and synchronization)
• PTPv2 daemon
Switching Features
• Multicast, Spanning Tree, GMRP/GARP support
• VLAN tagging
• SNMP protocol support
Other Features
• Remote management via SSH and SNMP
• Network boot via TFTP and remote firmware update
• Automatic IP configuration (DHCP)
• Power: 100–240 VAC, 2 A, 50–60 Hz input; 12 VDC, 6.66 A, 80 W output
Applications
• 5G and next-generation telecommunications
• Financial transaction systems
• Power grid synchronization
• Geolocation and positioning
• Scientific infrastructure, including particle accelerators and astronomical observatory networks
Compare
Feature
WRS
WRS with Low Jitter Daughterboard
Main Function
Time distribution and synchronization in WR networks
Improved clock stability and precision for WRS signals
Clock System
Built-in generators and PLL (CDCM61002, AD9516)
External PLL AD9516-4 low phase-noise, 20 MHz VCTCXO
Oscillator
VCXO 25 MHz + XO 25 MHz (FPGA main clock)
Connor-Winfield DOT050 VCTCXO 20 MHz (low phase noise)
Optional Oscillators
None
Abracom ABLNO, Crystek CCHD-950, IQOV-162-3 OCXO
Jitter
Standard WRS level
< 2 ps RMS (typ. 1.5 ps RMS)
And There’s More
We offer custom modifications of our hardware, firmware, and gateware, along with technical consulting services in electronic engineering, system design, integration, and testing. For more information, please contact our team.
Useful Links / Downloadable Resources
FAQ
Unlike conventional Ethernet switches, WRS supports the White Rabbit protocol, providing sub-nanosecond time synchronization. This ensures deterministic operation in distributed systems — something standard networks cannot guarantee.
No. The switch runs Linux and includes WRP and PTPv2 daemons that automatically detect nodes and manage synchronization. The management interface is user-friendly and accessible both locally and remotely.
