Booster HL

AvailableAsk

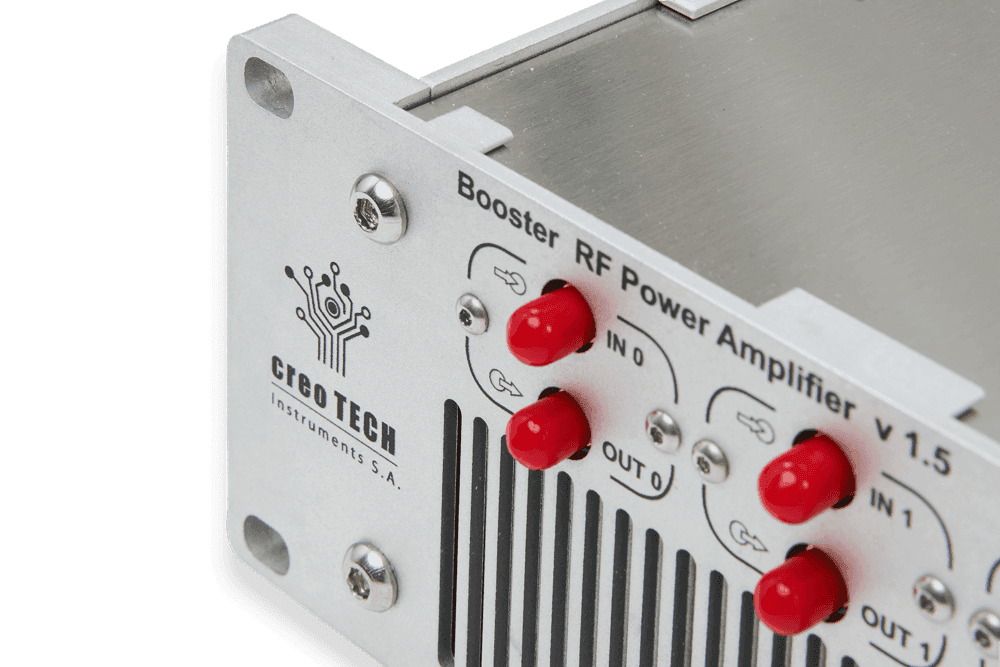

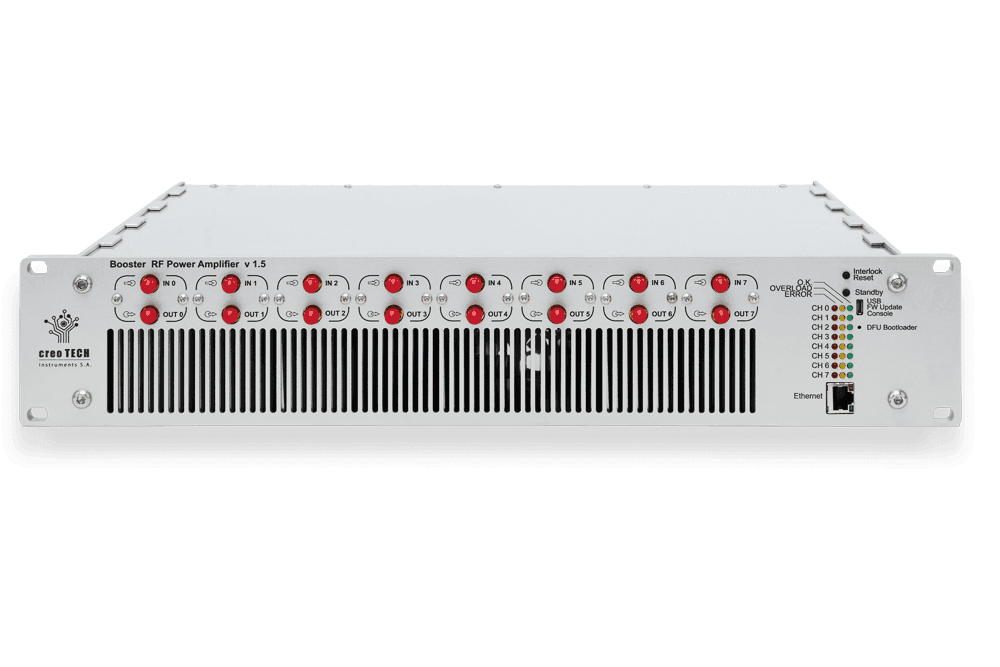

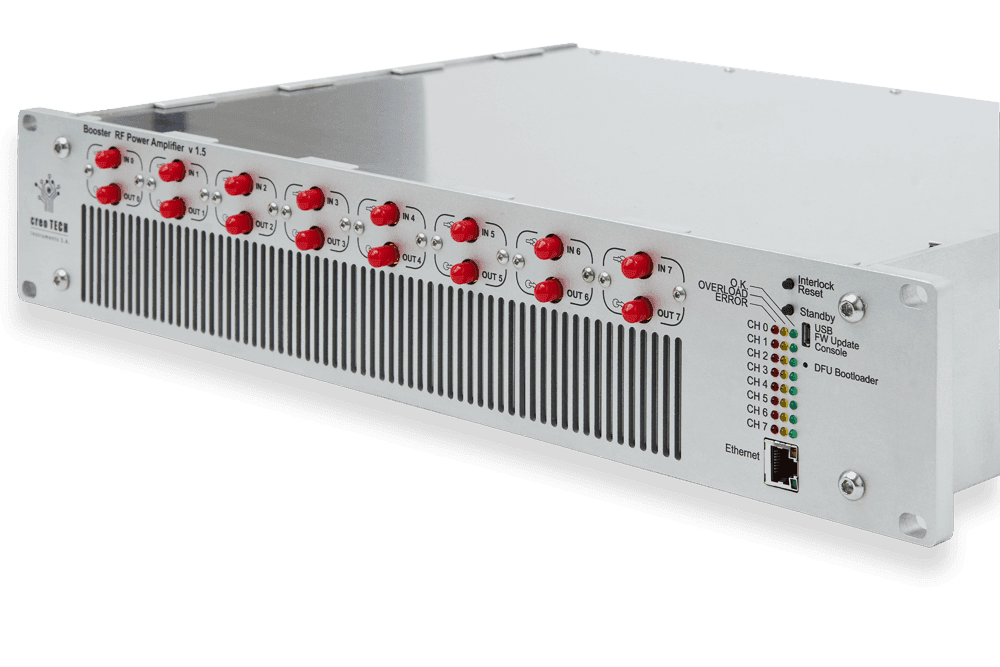

Booster HL is an 8-channel RF power amplifier delivering several watts across 100–500 MHz, housed in a compact 19” 2U chassis. It features very low signal distortion (THD), remote monitoring, and configurable interlocks via an Ethernet interface. The modular design allows field-replaceable channels, making Booster HL ideal for advanced RF applications requiring high linearity and precise control.

Technical Specifications

  • Power gain: 32 dB (±1.5 dB)
  • Bandwidth: 100–500 MHz
  • 3 dB small-signal bandwidth: 40–600 MHz
  • Maximum input power (no damage): 25 dBm
  • User-configurable interlocks: Protects Booster and connected loads
  • Interface: Ethernet for monitoring and configuration
  • Per-channel remote monitoring: Input power, output forward/reverse powers, temperatures, currents, and voltages
  • Remote control: Individual channel control via Ethernet
  • Modular design: Field-replaceable channels for easy frequency band changes
  • Hardware/Firmware: Open source

Applications

  • High-linearity RF amplification for laboratory and research setups
  • Multi-channel RF distribution in control and measurement systems
  • Precision signal generation for test & measurement applications
  • Driving sensitive RF loads where low distortion is critical
  • Advanced RF experiments requiring per-channel monitoring and remote control
  • Integration with modular MTCA or custom RF architectures



Compare

Parameter
Booster HL (High Linearity)
Booster HE (High Efficiency)
Optimization
Very low signal distortion (THD)
Low cost, low power consumption
Power gain
32 dB (±1.5 dB)
40 dB (±1.5 dB)
Bandwidth
100–500 MHz
100–500 MHz
3 dB small-signal bandwidth
40–600 MHz
40–600 MHz
Max input power (no damage)
25 dBm
25 dBm

Related Products

Booster HE

Booster HE

Booster HE

8-kanałowy, wzmacniacz RF, dostarczający do 5 W mocy RF w zakresie 100 MHz–500 MHz. Obudowa 2U do montażu w szafie rack 19”. Booster HE został zoptymalizowany pod kątem niskiego poboru mocy, przy zachowaniu wysokiej wydajności. Posiada zdalny interfejs sterowany przez [...]

And There’s More

We provide custom modifications of our hardware, firmware, and gateware, along with technical consulting in electronic engineering, system design, integration, and testing. For more information, contact our customer support team.

Useful Links / Downloadable Resources

Booster HL & HE (leaflet)
