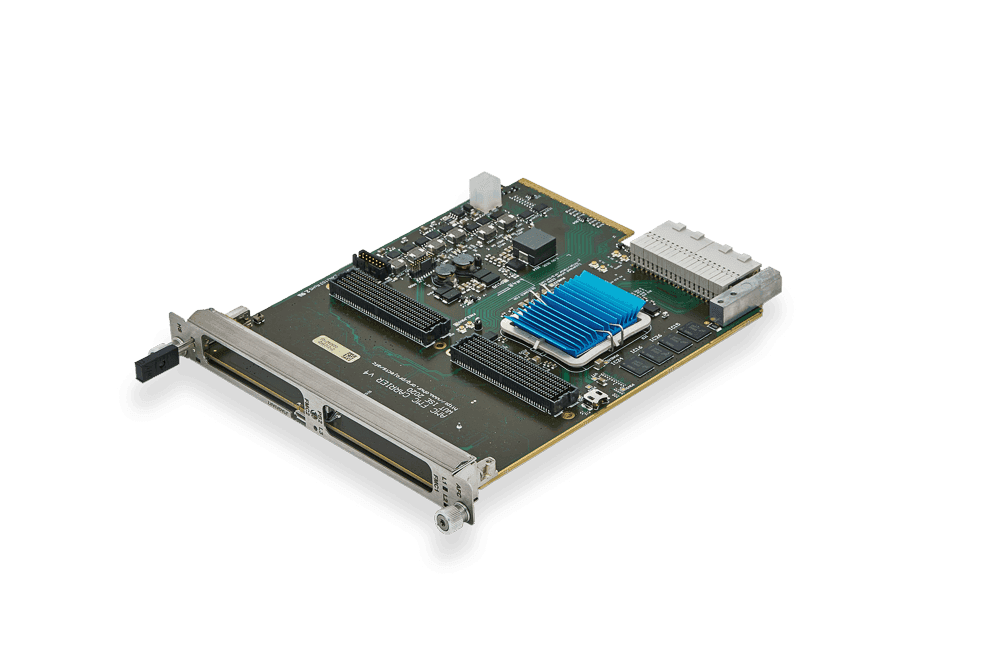

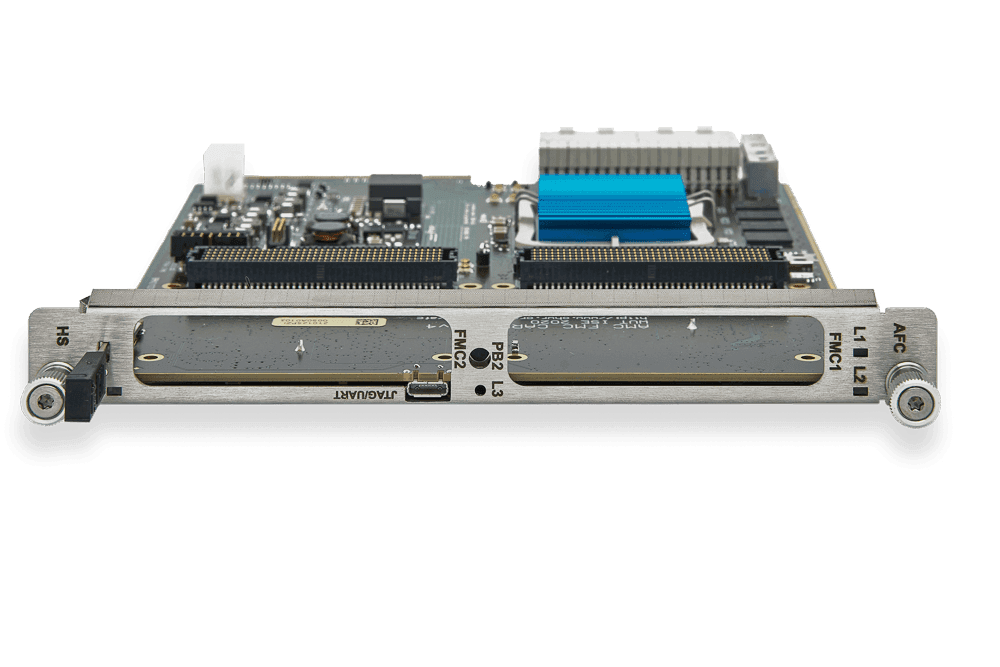

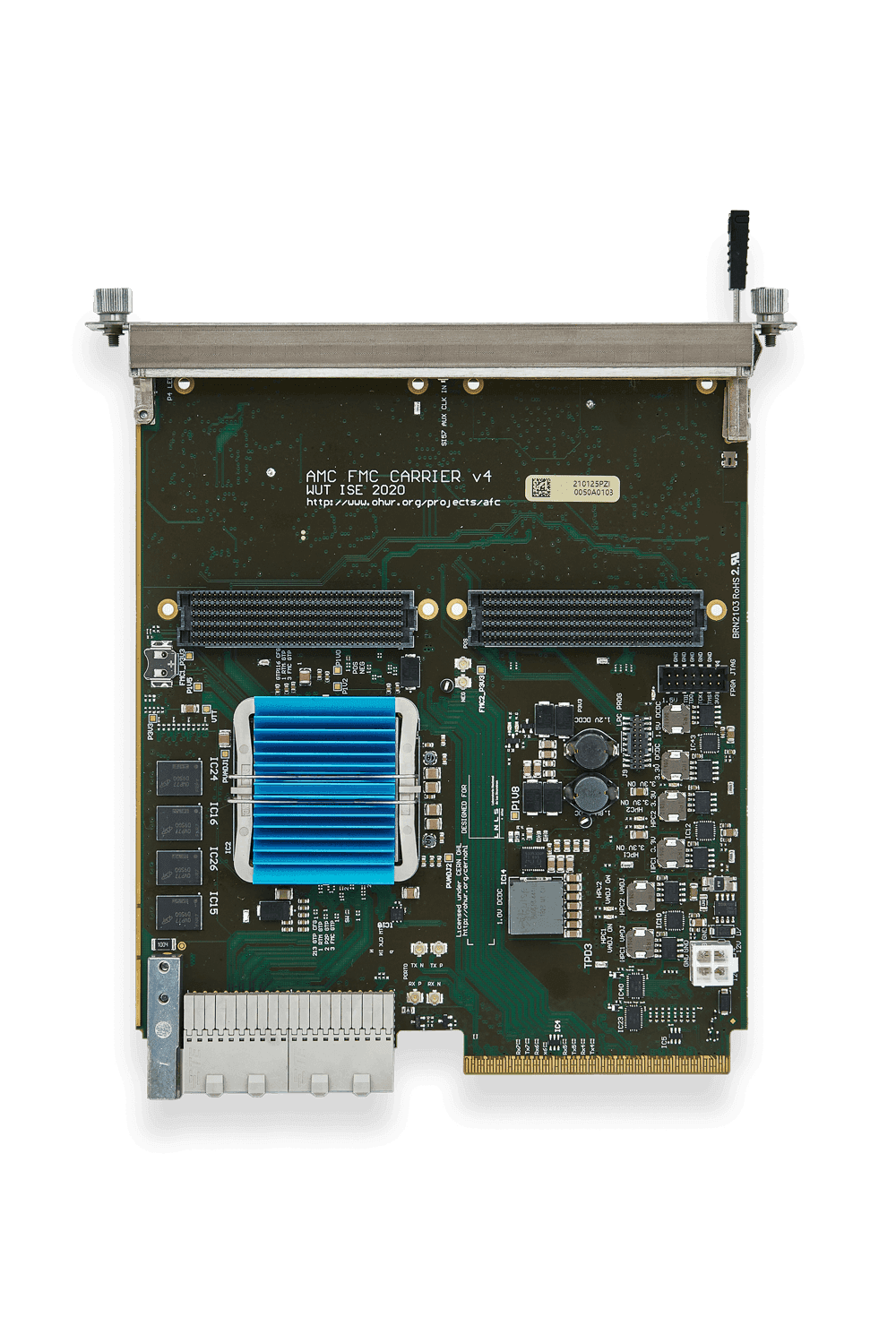

The AFC V4 is a versatile AMC FMC board, partially based on the SPEC design (power, White Rabbit clocks), designed to support four-channel, 16-bit FMC ADC boards, used for example in Sirius BPM electronics. The module features an extremely flexible synchronization system that allows connection to any clock source — including telecom, FMC, or FPGA — while ensuring full White Rabbit compatibility. It is equipped with a Xilinx Artix-7 FPGA and 2 GB DDR3 SDRAM, providing high computational performance and broad communication capabilities.
Programmable Devices
• Xilinx Artix-7 200T FFG1156 FPGA (XC7A200T-3FFG1156C)
• LPC1768 (ARM Cortex-M3)
Memory
• 2 GB DDR3 SDRAM (32-bit interface)
• SPI Flash for FPGA configuration
• EEPROM with MAC and unique ID
Connectivity
• 2 HPC connectors for two single-width expansion cards or one double-width card
• Mini-USB connected to IPMI processor and FPGA
• MGT routed to FMC1, FMC2, Fat Pipe 1–2 (optional), Port0–3 (optional), RTM (optional)
• RTM connector with 8 GTP lanes (DESY Zone 3 D1.3 standard), compatible with RTM-4SFP-3QSFP
Power
• FPGA, memory, and FMC controllers – programmable VADJ 1.8–3.3 V
• Independent 12 V power input
Other Features
• Clock distribution compatible with White Rabbit and ARTIQ
• Monitoring of voltage, current, and temperature on critical power rails
• JTAG access to FMC and RTM
