AMC FMC CARRIER – AFCZ

Available on requestAsk

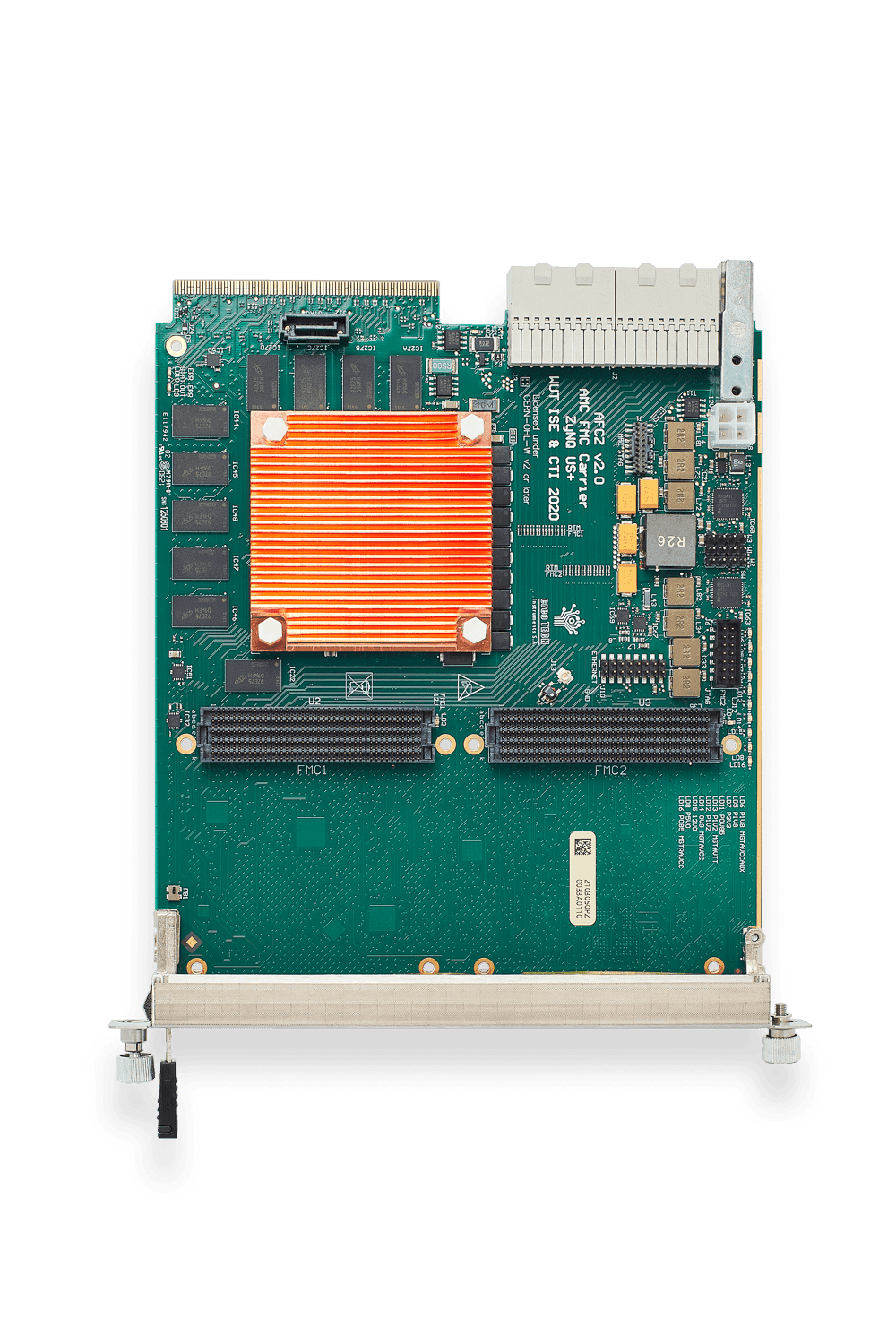

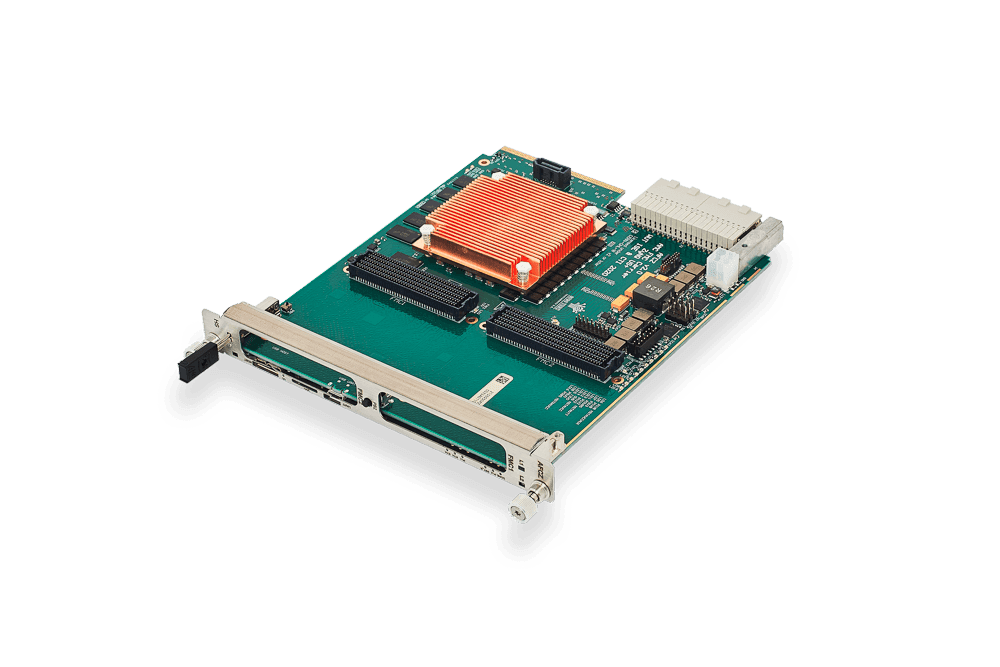

The AFCZ is a high-performance dual FMC carrier in the MTCA standard, built around the Zynq UltraScale+ ZU7EV SoC. It features a versatile clocking system, configurable gigabit transceivers, and full White Rabbit time synchronization with RTM module support. With two FMC LPC connectors offering eight GTH lanes and three DDR4 memory banks, the AFCZ delivers exceptional computing power and flexible communication options. Dual FLASH boot, an onboard JTAG debugger, USB 3.0 and SD card support, and programmable Exar-based power supply make it ideal for the most demanding real-time control and data processing applications.

Technical Specifications

• SoC: XCZU7CG-1FFVF1517E

• 3 DDR4 memory banks: 72-bit (PS), 64-bit (PL), 16-bit (PL)

• Dual FLASH boot (primary and backup) with update via MMC

• openMMC support

• MMC access to PORT0/PORT1 Ethernet via onboard L2 switch

• Flexible, low-jitter clocking system

• Dual FMC LPC connectors with 8 GTH lanes on the expansion card

• RTM connector with 16 GTH lanes

• USB 3.0 routed to the front panel

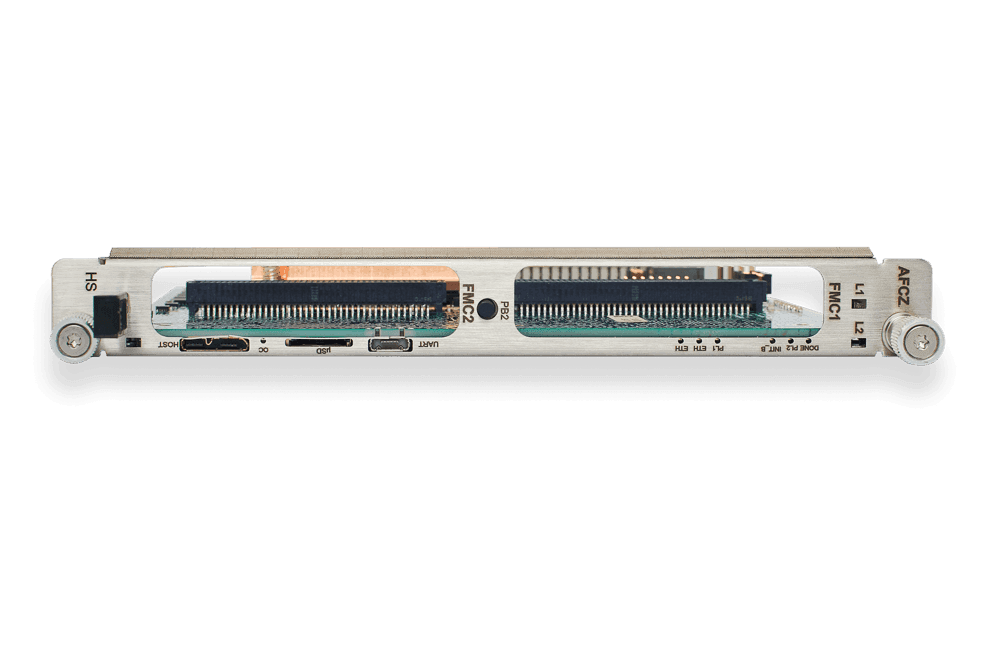

• SD card slot accessible from the front panel, independent of chassis power and communication connectors

• GTR routed to PORT2/3, with internal SATA and USB 3.0

• Flexible power supplied via programmable Exar regulators

• Onboard JTAG debugger, MMC update channel, and dual console via a single USB

• JTAG switch supporting AMC, USB, RTM, and FMC

Applications

MTCA-based systems designed for high-end research infrastructures and industrial applications.
Advanced real-time systems with multi-channel data processing and ultra-precise White Rabbit synchronization.
