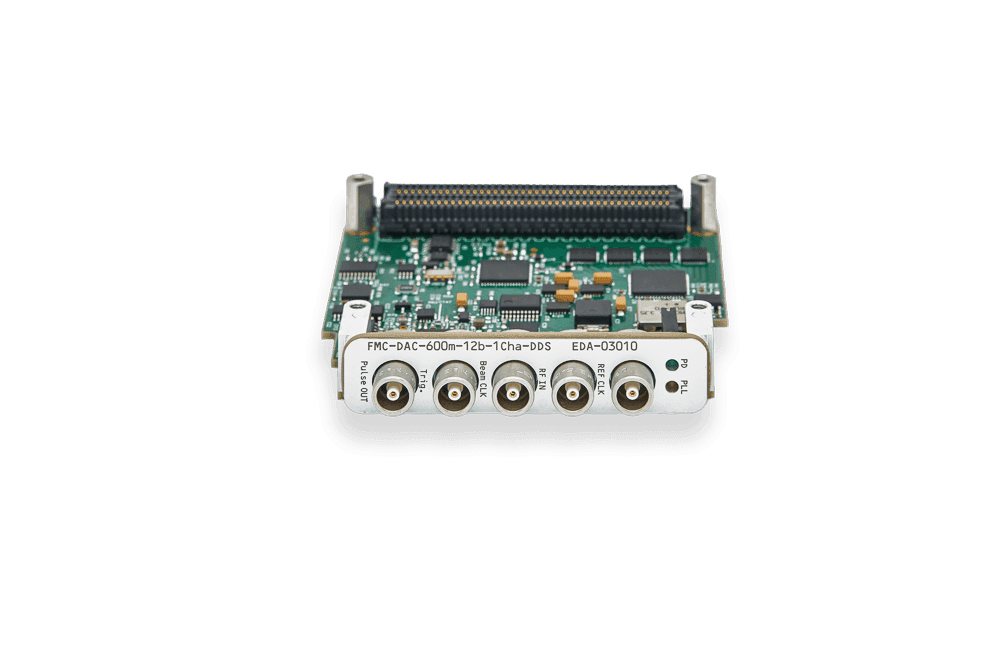

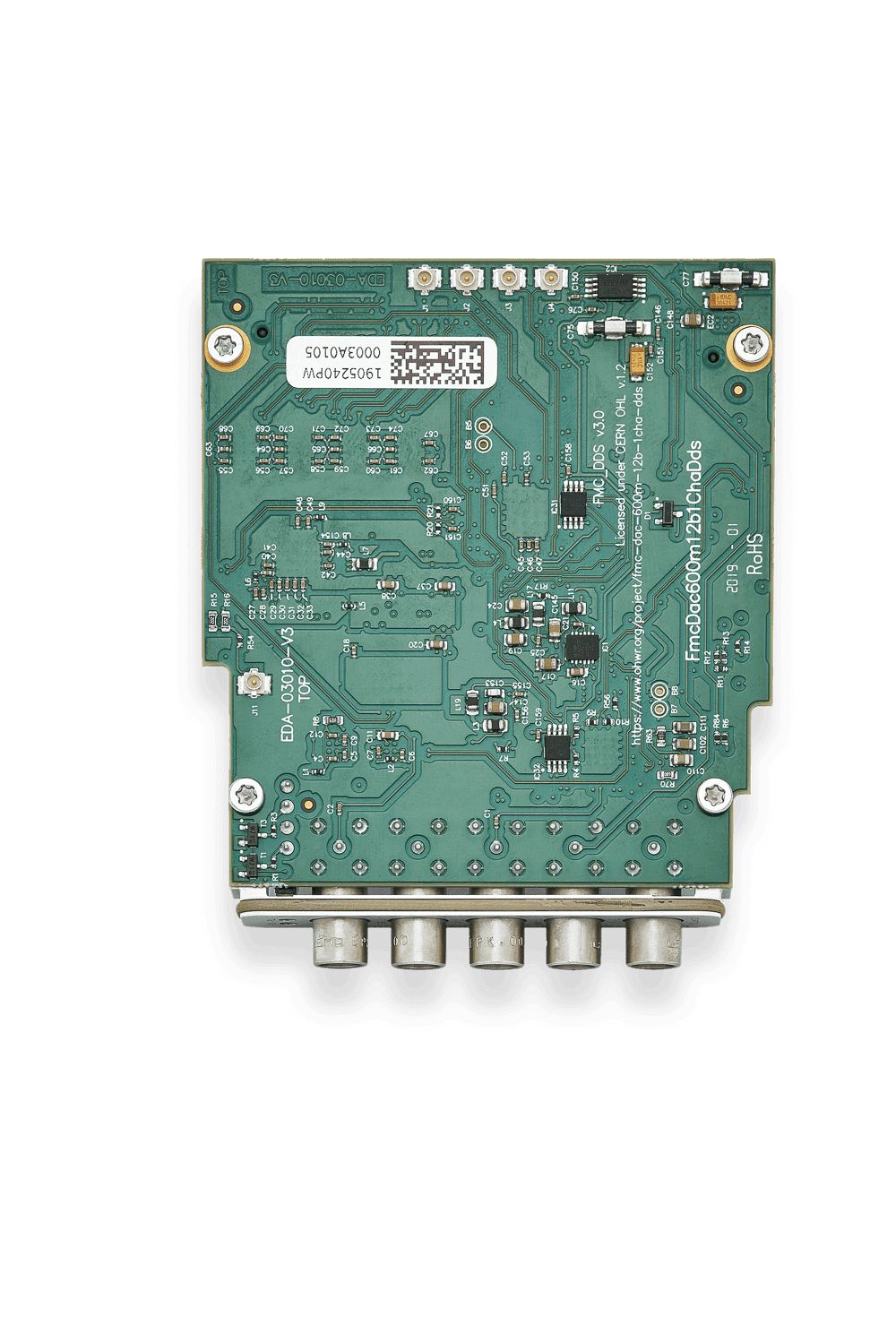

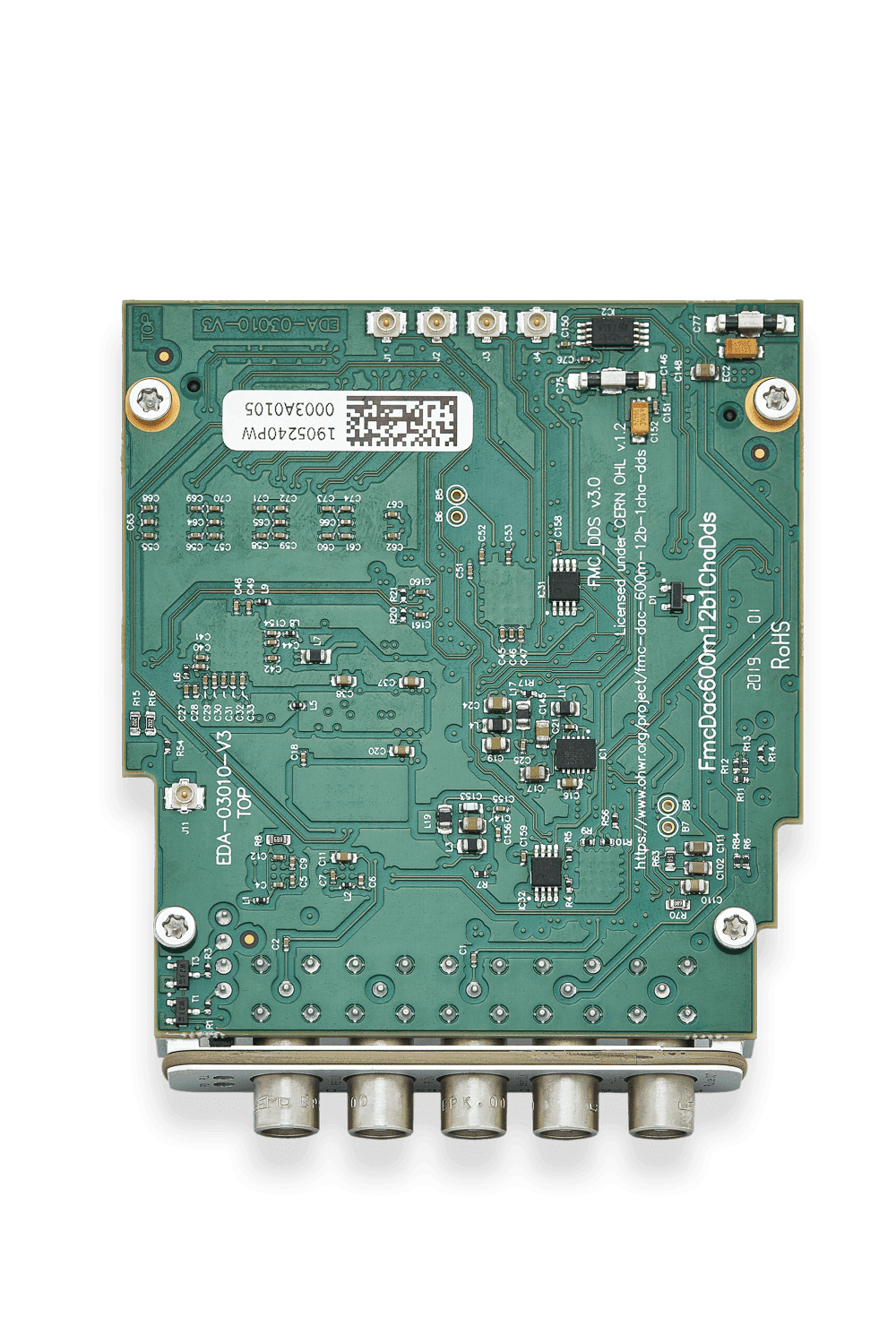

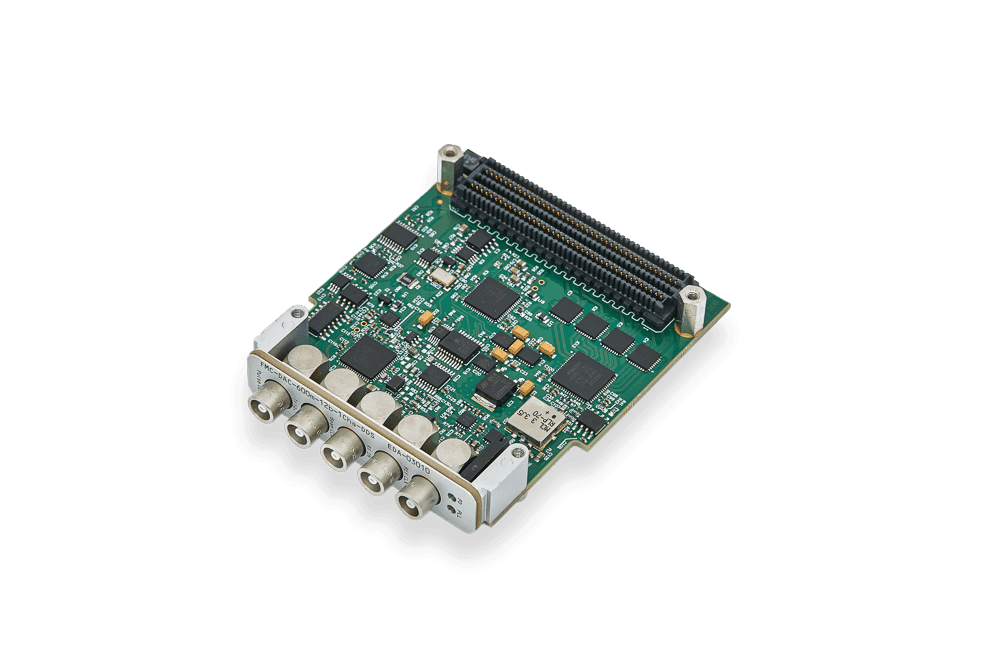

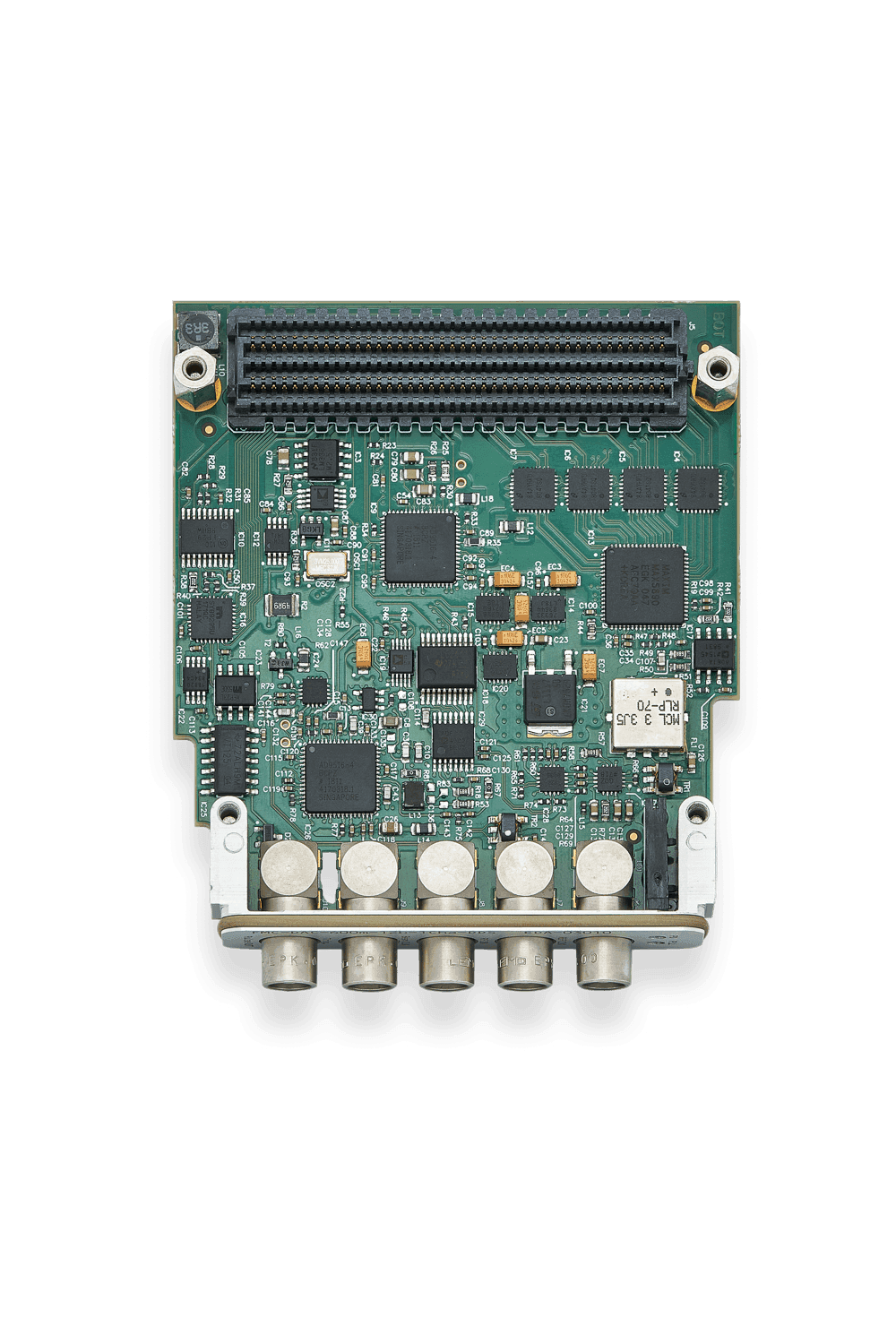

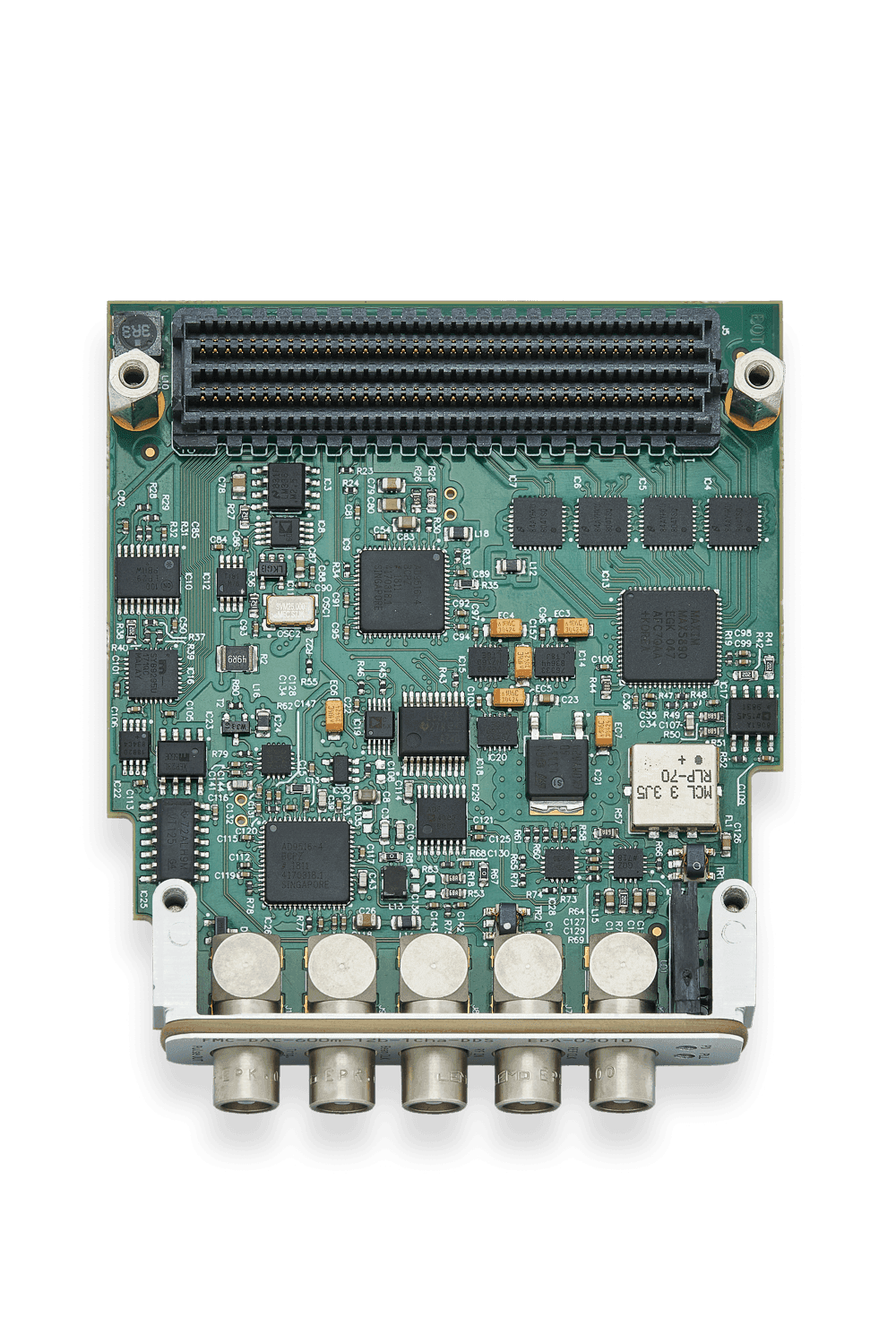

The FMC DAC 600M 12B 1CHA DDS is an FPGA expansion module for ultra-precise RF signal generation and distribution in White Rabbit networks. Paired with a SPEC card, it forms a complete RF distribution node, enabling sub-nanosecond synchronization with ultra-low jitter (<20 ps). It distributes clock and RF signals to multiple devices while maintaining time and phase coherence. Ideal for particle accelerators, time metrology, measurement systems, and advanced telecom networks.
Module Features
• Low-Pin Count FMC module
• 14-bit DAC 600 MHz (MAX5890EGK+D) with fanout and amplifier
• Phase detector ADF4002 with programmable LPF and 16-bit ADC
• PLL AD9510 with external oscillator for RF signal jitter reduction
• 4-layer PCB
• Onboard temperature sensor IC (DS18B20U+)
• 64 kbit EEPROM for storing application parameters
• 2 status LEDs
Inputs / Outputs (LEMO 00)
• RF input 50 Ω (up to 500 MHz)
• RF output 50 Ω (up to 500 MHz)
• RMS jitter < 20 ps (V2 1 version)
• Split beam clock output (LVTTL)
• External trigger input (LVTTL)
• Synchronous RF trigger output with fine delay adjustment (LVTTL)
Clocking Resources
• 1× VCTCXO with user-defined frequency, controlled by PLL AD9510 (low-jitter)
• 1× TCXO 25 MHz controlled via DAC SPI interface (AD5662, used by White Rabbit PTP core)
• Low-jitter synthesizer/fanout (AD9516)
• Synchronous trigger output with beam clock and fine delay adjustment (SY89295)

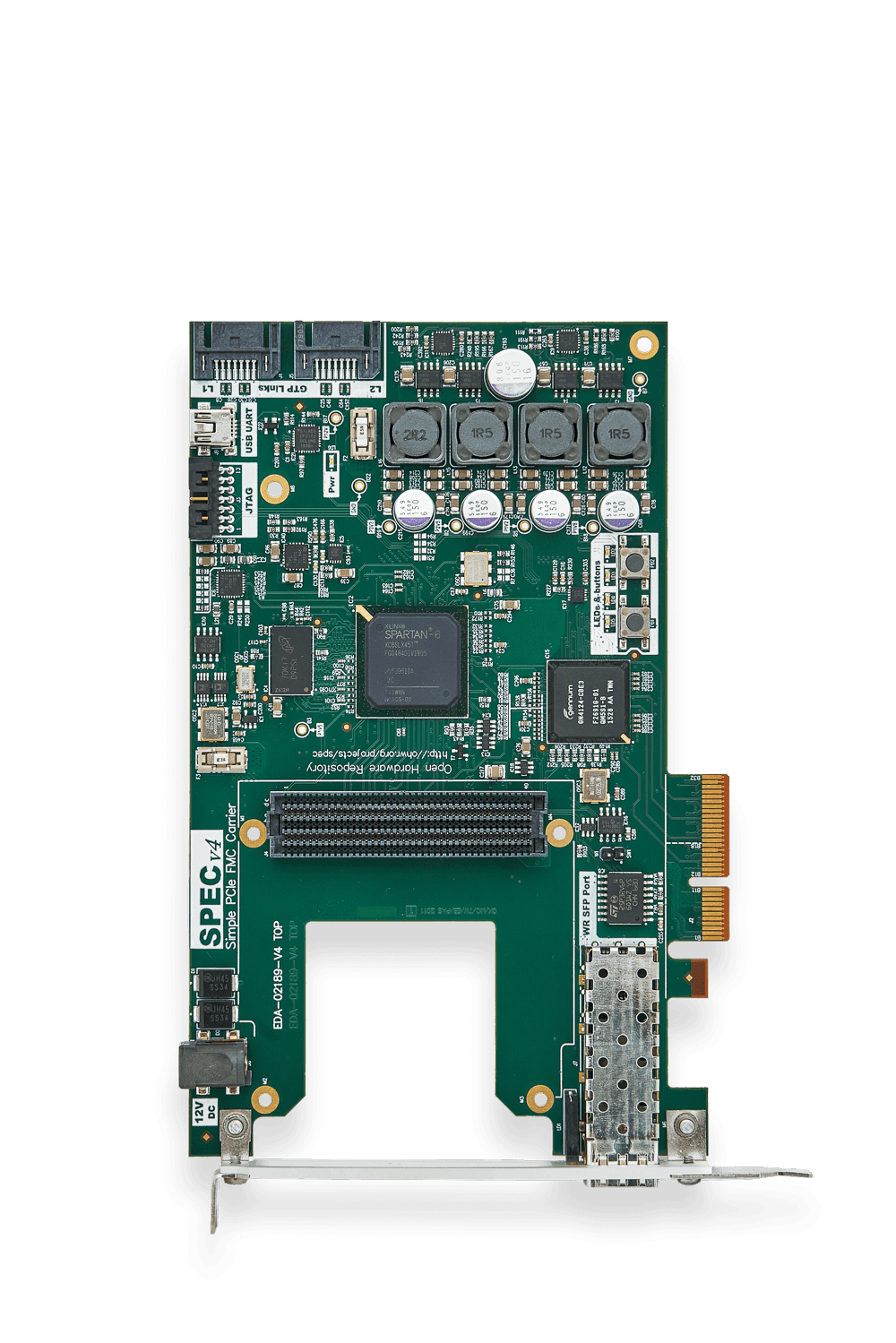

The module is designed to work with the Simple PCIe FMC Carrier – SPEC card and distributes periodic signals (primarily clock signals) of arbitrary frequencies across a White Rabbit network. In accelerator applications, it can be used for beam synchronization, RF clock distribution, and acquisition of RF or beam-synchronous signals.
We provide custom modifications of our hardware, firmware, and gateware, along with technical consulting in electronic engineering, system design, integration, and testing. For more information, contact our customer support team.
