FMC DIO 32CH LVDS A

AvailableAsk

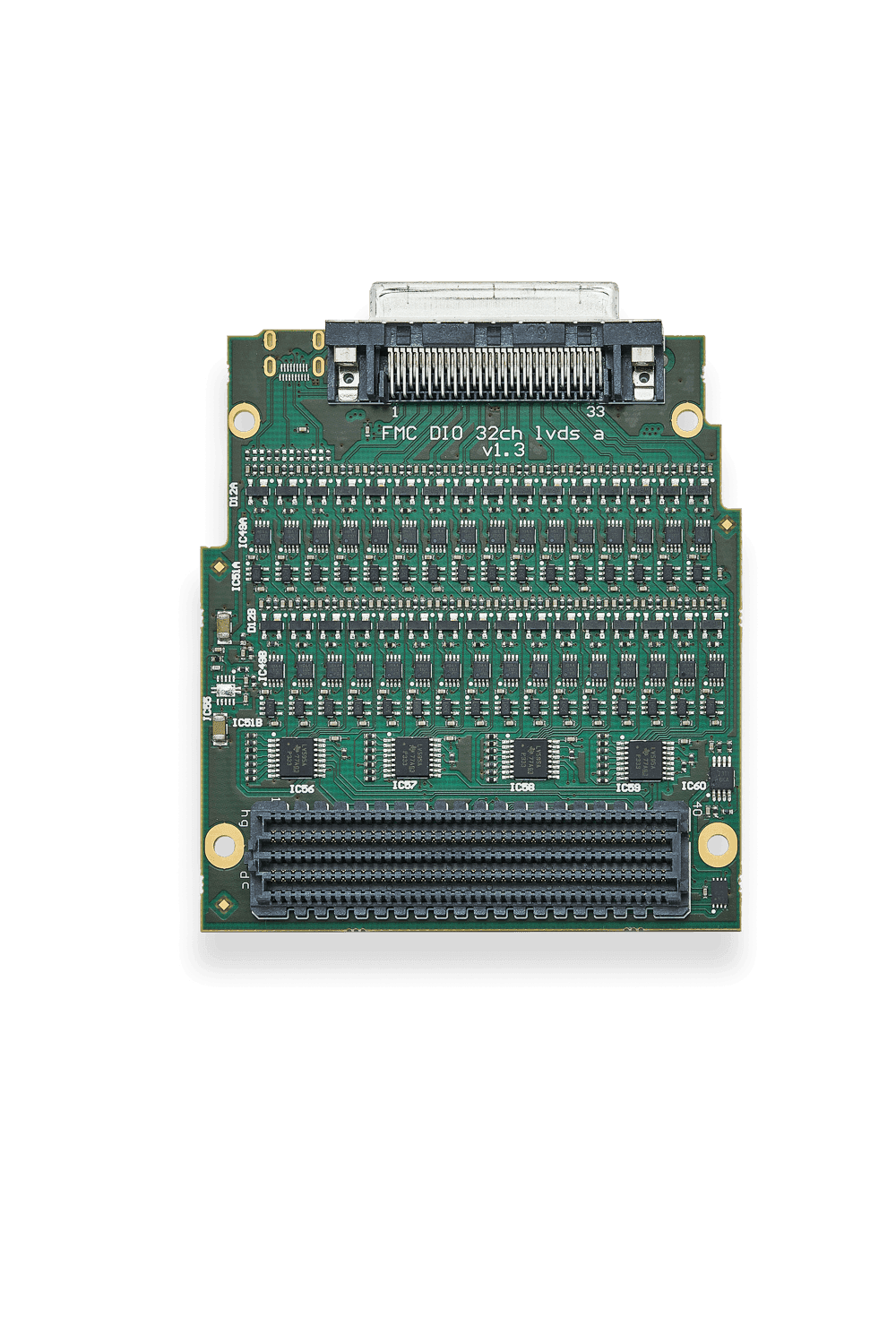

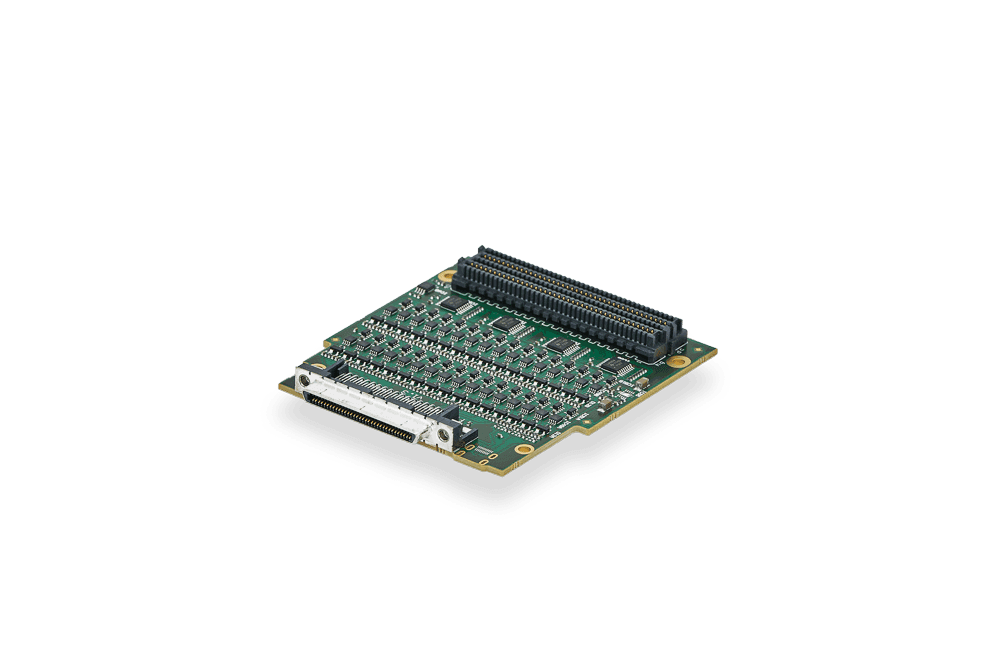

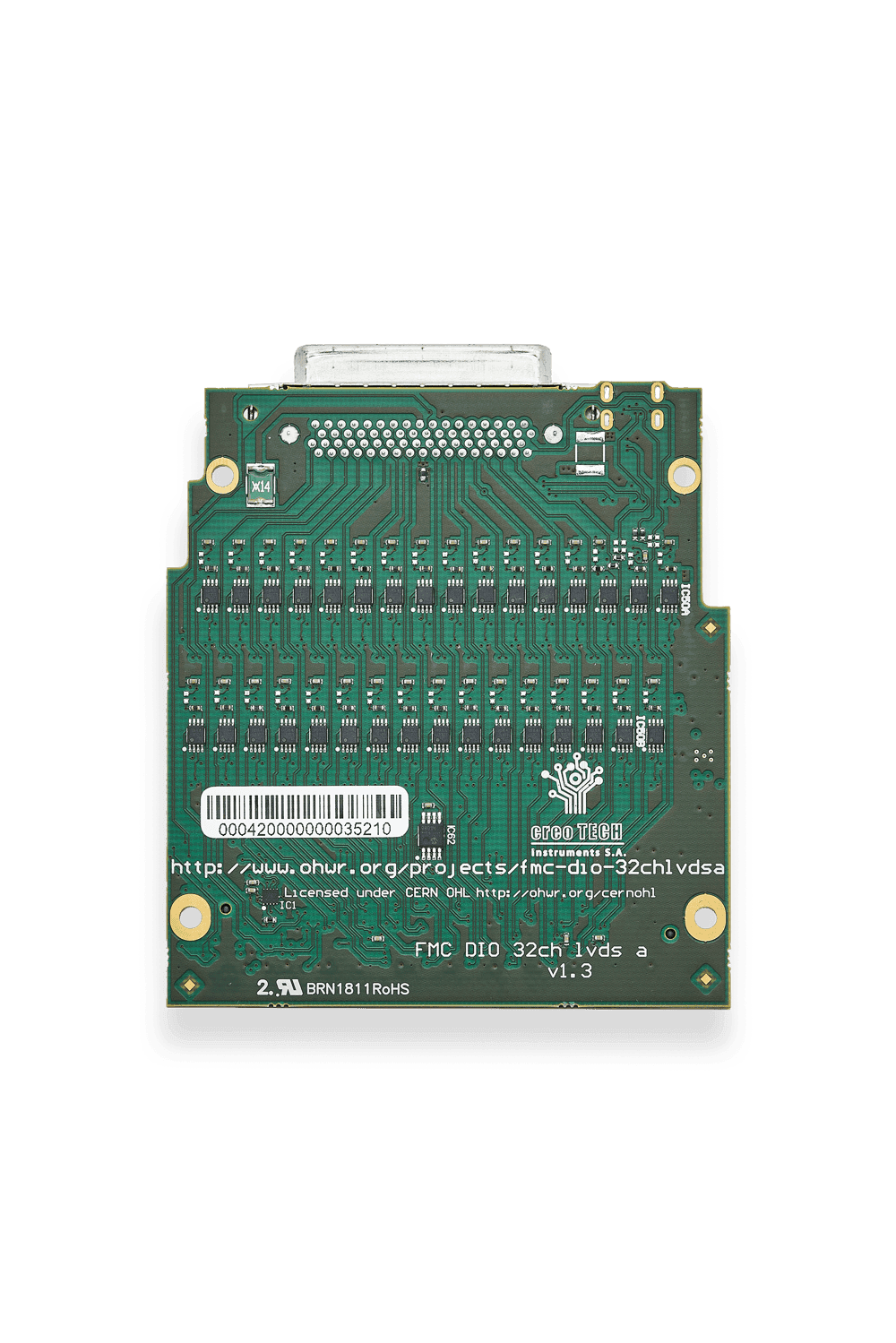

The FMC DIO 32CH LVDS A is a versatile 32-channel bidirectional LVDS card. It features a VHDCI connector compatible with the SCSI standard and a front-panel micro-HDMI connector carrying I²C and LVDS signals.

Each channel supports AC coupling and includes ESD protection. The ports are terminated to 1.65 V with dual 50 Ω resistors, and channel direction is programmable via an SPI-like serial interface. The VHDCI connector also provides 3.3 V power and a buffered I²C interface.

Technical Specifications

• Standard: FMC LPC

• 32 bidirectional I/O ports

• Output signal level: LVDS

• Input signal level: LVDS, terminated with dual 50 Ω resistors to a 1.65 V reference

• ESD protection on all I/O ports

• Data rate: 300 Mbit/s (tested); FIN1101K8X repeaters support up to 1.6 Gbit/s

• VHDCI connector compatible with the SCSI standard

• Optional micro-HDMI connector with four LVDS pairs and one clock signal

• Onboard temperature sensor (I²C)

• 4-layer PCB

Applications

• Designed for high-performance real-time systems requiring multi-channel data processing and ultra-precise time synchronization using White Rabbit technology.

• Compatible with our carrier boards in MTCA-based control and measurement systems.

• Typical applications include control and monitoring of large-scale research infrastructures.

Compare

Feature / Module

FMC DIO 32CH LVDS A

FMC DAC 600M 12B 1CHA DDS

FMC ADC 250M 16B 4CHA

Module Type

FMC LPC, Digital IO

Low-Pin Count FMC, DAC

VITA 57.1-2010 FMC LPC, ADC

Main Function

Digital I/O (32 LVDS channels)

RF signal generation (DAC 600 MHz, DDS)

Analog signal sampling (ADC 250 MSPS)

Channels

32 IO

Resolution

LVDS digital

14-bit DAC

16-bit ADC

RF / Clock I/O

32 LVDS ports, input/output LVDS levels, VHDCI / optional micro-HDMI

50 Ω RF input/output up to 500 MHz, LVTTL beam clock outputs, LVTTL RF trigger

ADC clock input 50–250 MHz, external reference 0.5–20 MHz, HF PLL output, PLL sync
